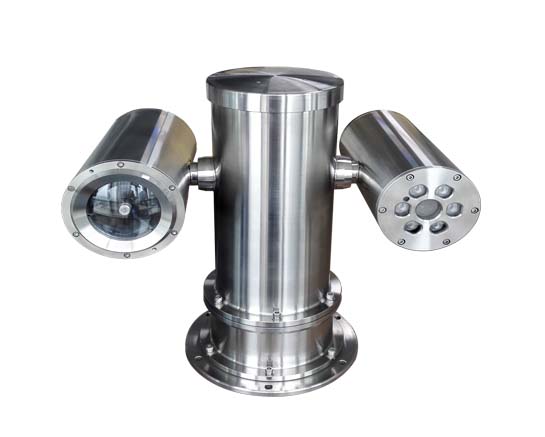

G6000C Fixed Scanning Laser Gas Telemetry
G6000C Fixed Scanning Laser Gas Telemetry

G6000C Fixed Scanning Laser Gas Telemetry

    • Three-dimensional space active detection

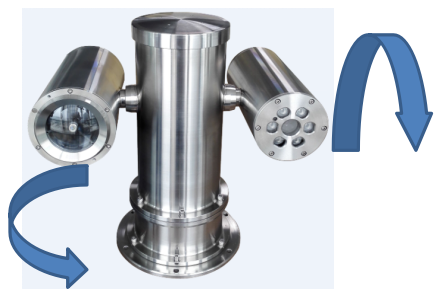

    • Horizontal 360°, longitudinal 180° rotation scan
    • Camera synchronization capture

    • Live sound and light alarm
    • Background computer monitoring
Product description

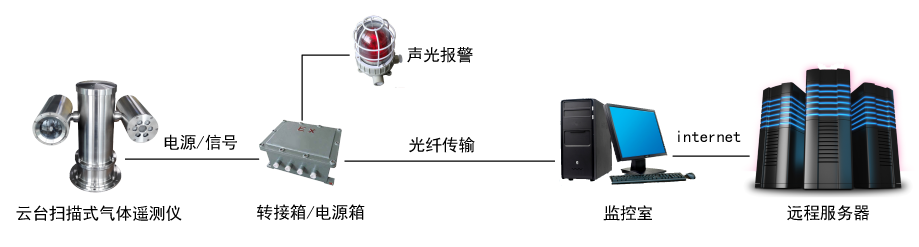

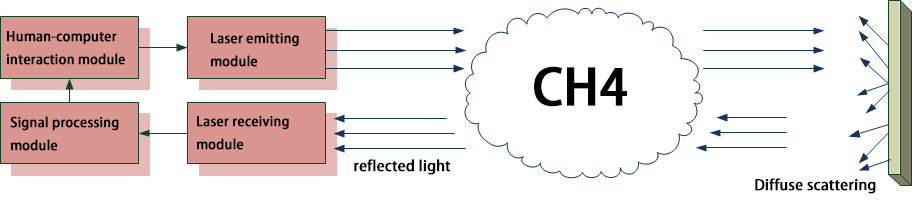

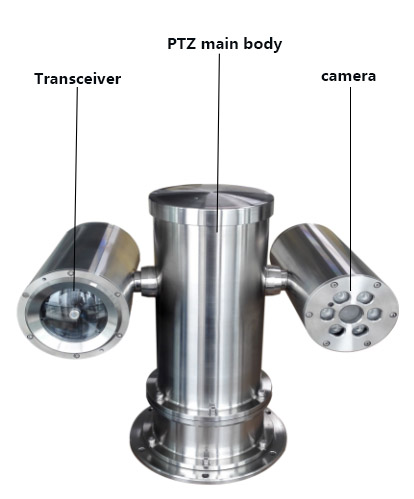

G6000C fixed scanning laser gas telemetry consists of two parts: controller and upper controller,based on the principle of laser absorption spectroscopy, the concentration of methane gas in the detection area of the laser transceiver can be monitored online and remotely in real time,and it have the functions of signal acquisition, conversion and transmission.



G6000C fixed scanning laser gas telemetry consists of two parts: controller and upper controller,based on the principle of laser absorption spectroscopy, the concentration of methane gas in the detection area of the laser transceiver can be monitored online and remotely in real time,and it have the functions of signal acquisition, conversion and transmission.

Henan otywell electronic technology co., LTD.Henan otywell electronic technology co., LTD.



Three-dimensional space active detection

Horizontal 360°, longitudinal 180° rotation scan

Camera synchronization capture

Live sound and light alarm

Background computer monitoring

Henan otywell electronic technology co., LTD.



Henan otywell electronic technology co., LTD.







Henan otywell electronic technology co., LTD.









Technical index

Detection gas

CH4

Detection range:

0 to 5000pm .m

Sensitivity

5ppm•m

Detection effective distance

0 ~ 100 meters

Video camera

with video camera

PTZ scanning angle

0 ~ 360 °, -90 ~ +90 °

Response time

0.5 seconds

Working power

AC220V

Output interface:

RS485

Explosion-proof mark

 Ex ib IIB T4 Gb

Protection level:

IP65

Net weight

30kg

Installation method

seat type installation

Temperature

-25~+50°C



Humidity : ( 0 ~ 90 ) % RH without condensation
