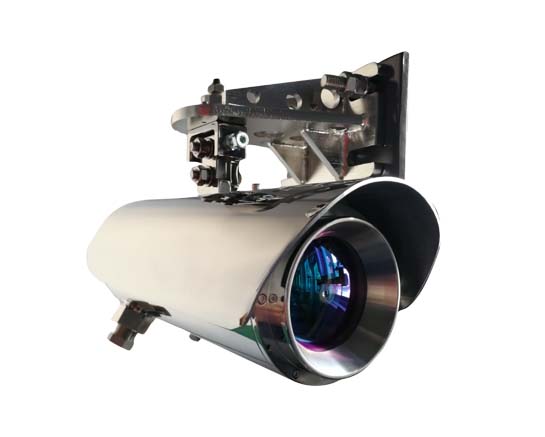

G6000B Open circuit type laser gas online monitoring system
G6000B Open circuit type laser gas online monitoring system

G6000B Open circuit type laser gas online monitoring system

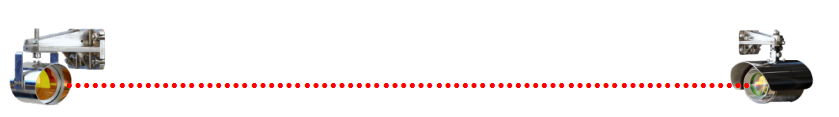

    • Ultra long distance monitoring range
    • only one side power supply and wiring
    • Live sound and light alarm
    • Background computer monitoring
product description
  • Ultra long distance monitoring range
  • only one side power supply and wiring
  • Live sound and light alarm
  • Background computer monitoring



Henan otywell electronic technology co., LTD.



Henan otywell electronic technology co., LTD.

Technical index

Detection Principle

TDLAS

Gas Detected

CH4

Detection range

0 - 5000 ppm.m

Accuracy

1ppm.m

Response Time

1 second

Effective detection distance

0-30meters

Power supply

DC12V-28V

Output signal

RS485/4-20mA

Explosion-proof grade

Ex i b II B T4 Gb

Protection level

IP65

Net weight

3kg

Installation

Wall-mounted/4’’ riser installation

Environmental temperature

-25℃~50℃

Environment humidity

( 0 ~ 90 ) % RH
