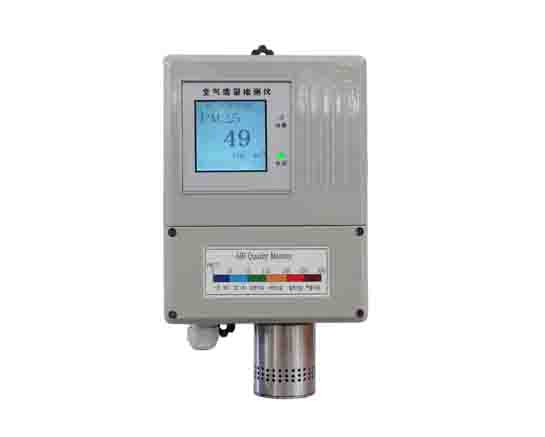

TCB600 Air quality monitor
TCB600 Air quality monitor

TCB600 Air quality monitor

    • Article 3000 alarm query record function
    • Chinese characters interface, humanized operation.
    • Low temperature, the time display.
    • Switch output low with two groups.
Product description

TCB600 is laser scattering dust particles (PM1.0, PM2.5 and PM10) measuring instrument. Mainly used in industrial site of the explosion field dust particles concentration measurement of measuring instruments. This product has a fast response, high sensitivity, good stability, Chinese interface, easy installation, etc.



Article 3000 alarm query record function

Chinese characters interface, humanized operation.

Low temperature, the time display.

Switch output low with two groups.

Low concentration record 15 days (every two hours recording an average, morning, afternoon average).

Low alarm sound and light warning.

Low concentration of free to set the alarm prompt way, and alarm value

The structure of low waterproof and dustproof design

The use of low electricity can, without other operations

Technical index

Detection of particle size

0.3um~1.0um、1.0um~2.5um、2.5um~10um;

Detection range

1ug/m3~1000ug/m3

Detect the error

0~200(±10%);200~1000(±15%)

Response time

≤10s

Test method

suction

Display mode

liquid crystal display (PM1 PM2.5 / PM10 can display at the same time, can also be shown separately)

Work style

long-term continuous work

Installation method

hanging

Working temperature

-20℃ ~ 50℃

Working voltage

AC220V±10%

Power waste

≤2W

Weight

≤2.5KG

Shell material

aluminum

Appearance size

L248 x W152 x H73

Accessory function

Temperature display function
