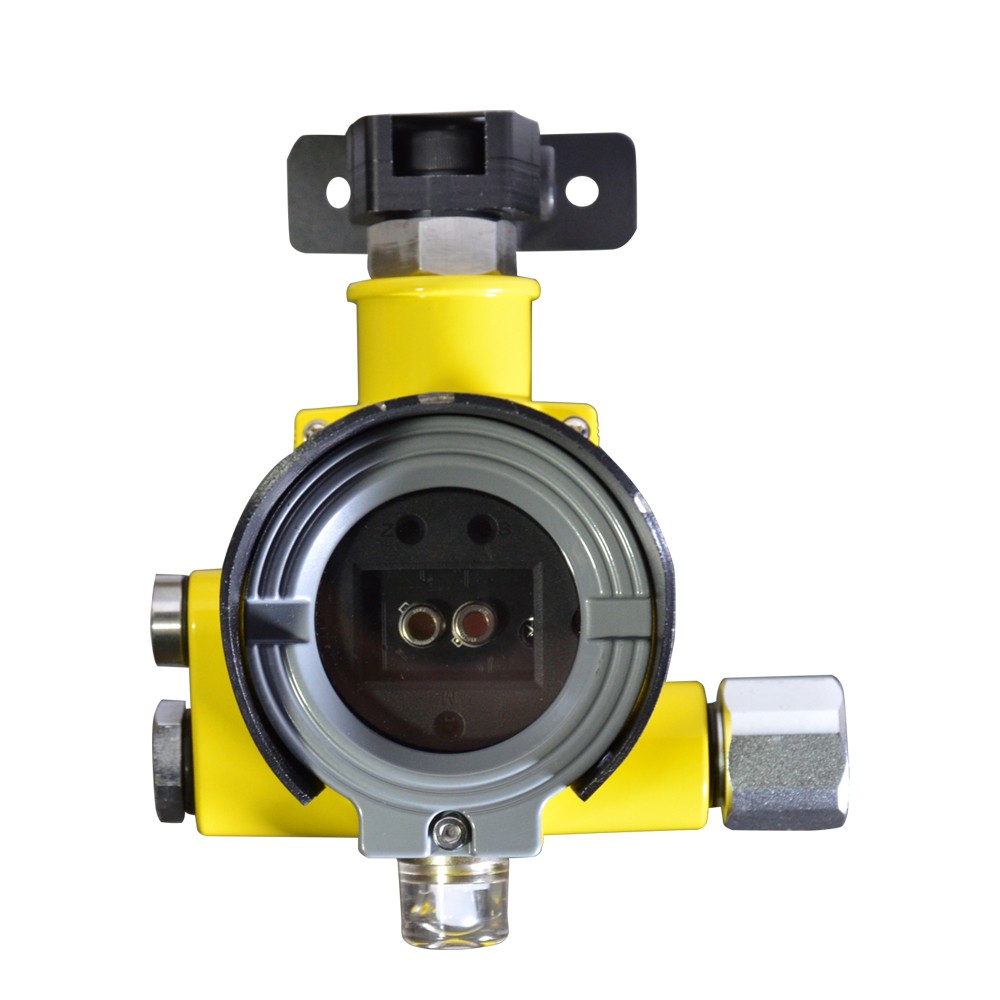

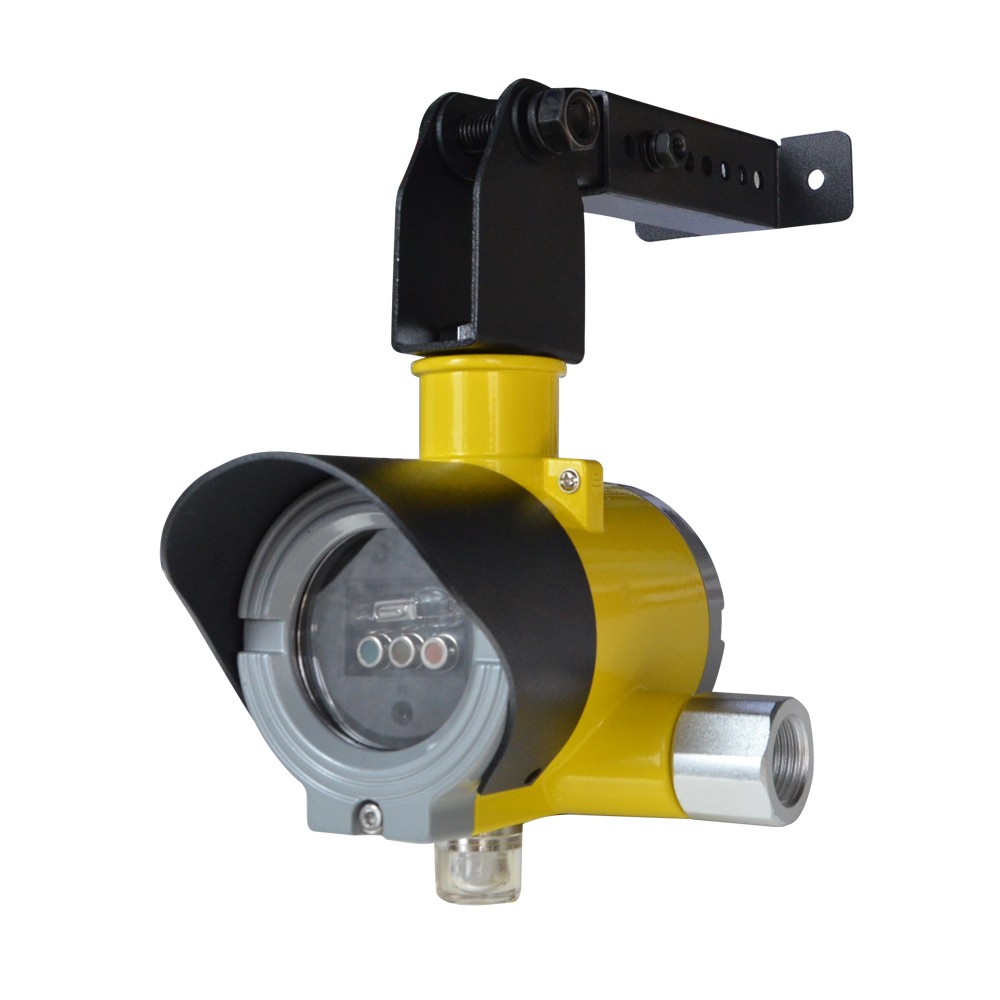

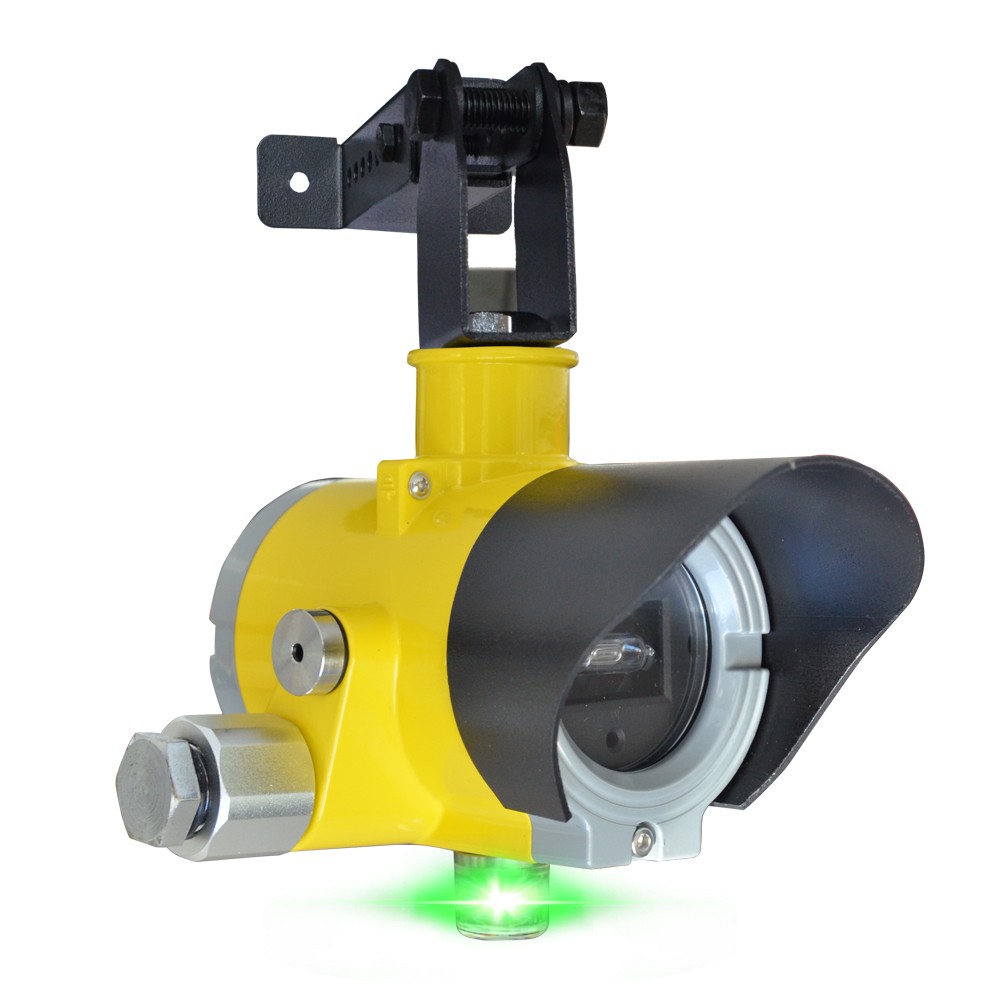

Ultraviolet Infrared UV IR Fire Flame Detector

Ultraviolet Infrared UV IR Fire Flame Detector

Response spectrum range: 2.2-4.4μm
Response time: 6s
Viewing angle range: ≤120 °
Detection distance: level 1
Ambient temperature: -10 ~ 55 ℃

Mobile/whatsapp: +86-13333858191 Email: [email protected]

Send Email Inquiry Now

Product Description

Infrared and ultraviolet flame detectors have multiple signal processing algorithms, which can suppress false alarms to the greatest extent and have the best fire detection performance. The special fire signal processing method and multi-sensor detection technology greatly improve the sensitivity and response time of the detector, and the sensitivity of the detector can be automatically adjusted according to the change of the use environment.

Our S600 Flame Detectors are suitable for liquid and gas fires, open fires with smoke and places that are prone to explosive combustion, and have early warning performance for organic materials such as hydrocarbons and inorganic fires.

Technical index

Response spectrum range	IR: 3.8-4.4μm UV: 185-260nm
Response time	6s
Viewing angle range	≤120°
Detection distance:	Class I
Ambient temperature:	-10 ~ 55 ℃
Environmental humidity	≤95% RH
Pressure range	86 ~ 106Kpa
Working voltage	DC24V
Working current	Current≤25mA, alarm current≤35mA
Protection grade	IP66
Signal output	Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector)
Installation method:	Wall or ceiling
Cable outlet thread	20mmX1.5mm free conversion G1 / 2 optional
Dimensions	(190X160X110) mm
Shell material	Die-cast aluminum
Weight	1Kg
Advantages	Dustproof, explosion-proof and corrosion-proof
