S350AS Handhold laser methane telemeter

Miniaturized design, easy to carry

non-contact detection, especially suitable for areas that are difficult for personnel to access
It can be detected through the glass to better protect the personal safety of inspection personnel
Fingerprint feature, which is the only response to the gas under test and is not disturbed by other gases
It will not poison or drift, greatly increasing the service life of the product

Mobile/whatsapp: +86-13333858191 Email: [email protected]

Send Email Inquiry Now

product description

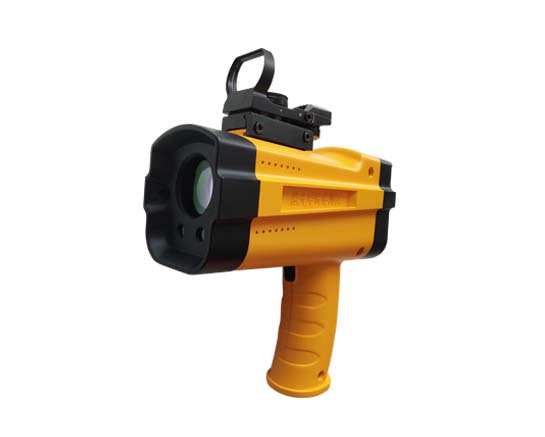

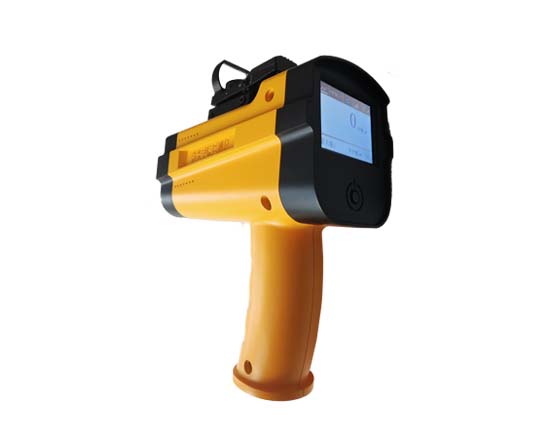

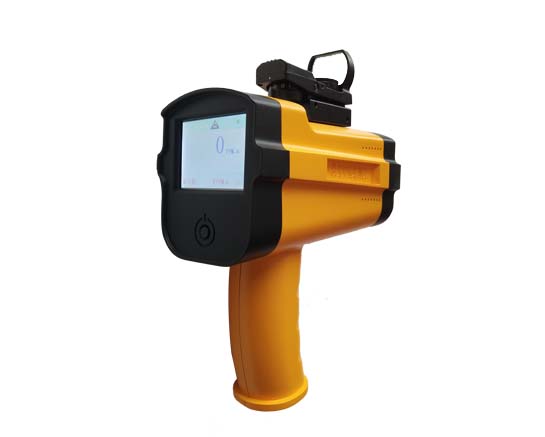

Handheld Remote Laser Methane(CH4) Gas Detector is the state-of-art gas inspection instrument. It adopts the most advanced laser gas detection technology and will provide precise location and find the leakage source efficiently.

G6000A portable laser gas telemetry instrument is composed of optical machine system, signal processing system, display and alarm system and shell components.Mainly used for remote measurement of methane or methane gas (natural gas, gas or similar gas) concentration. The telemeter sends an infrared laser to the detection point, which can quickly measure the concentration of air mass between the detection point and the telemeter.To facilitate observation, the telemeter also fired a visible red laser to the detection point.The telemetry instrument can detect the methane concentration value of the detected location in real time and accurately, display and store the methane concentration value. If the alarm value exceeds the value, the acousto-optic alarm will be given, so that the personnel can make subsequent disposal.

Detection principle

The measuring principle of the telemetry instrument makes full use of the absorption characteristics of methane gas to a specific wavelength. When the detection beam encounters methane molecules, part of the detection beam will be absorbed by methane molecules. By measuring the absorption rate, the concentration of methane gas mass distributed between the target point and the telemetry device can be known.

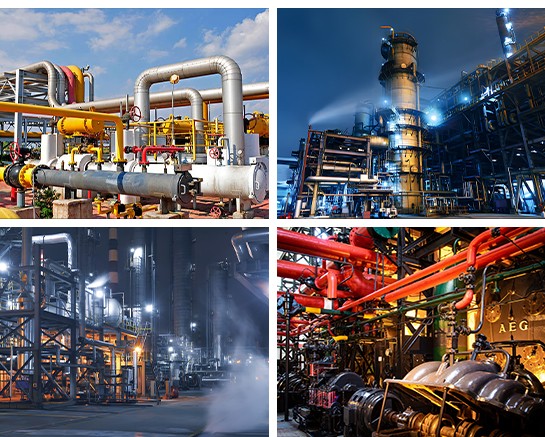

Applicable occasions

G6000A is widely used in the gas transmission and distribution industry

Including

1) inspection of gas pipe network

2) outdoor riser inspection of natural gas

3) do not enter the house for indoor inspection

4) inspection of natural gas storage tanks

5) remote detection of dangerous gas leakage area

6) detect areas that are difficult for personnel to reach

Main function

Henan Zhong An Electronic Detection Technology CO.,LTD.

Miniaturized design, easy to carry
Quick response in milliseconds, greatly reducing the inspection time and improving work efficiency
PPM level high sensitivity, gas leakage caused by early loosening of screws can also be timely detected
non-contact detection, especially suitable for areas that are difficult for personnel to access
It can be detected through the glass to better protect the personal safety of inspection personnel
Fingerprint feature, which is the only response to the gas under test and is not disturbed by other gases

Technical index

Detection range	(0 ~ 5000) PPM ·m、(0 ~ 10000) PPM ·m、(0 ~ 50000) PPM ·m、(0 ~ 100) PPM ·m
Detection distance	(1 ~ 100) m、(1 ~ 300) m
Minimum detection limit	1ppm·m
Accuracy	± 5% (relative truth value)
Response time	0.1s
Continuous working time	8h
Power supply	lithium battery
Display mode	2.4-inch LCD
Alarm display	concentration value turns red, LED light flashes
Alarm volume	greater than or equal to 60dB (1 meter)
Product size	180mm x 180mm x 80mm
Net weight of product	800g
Protection level	IP65
Explosion-proof grade	Ex ib IIA T3 Gb
Ambient temperature	(- 20 ~ 50) ℃
Environmental humidity	(0 ~ 95) %RH, no condensation
Battery voltage	7.4v
Battery capacity	3000mAH
