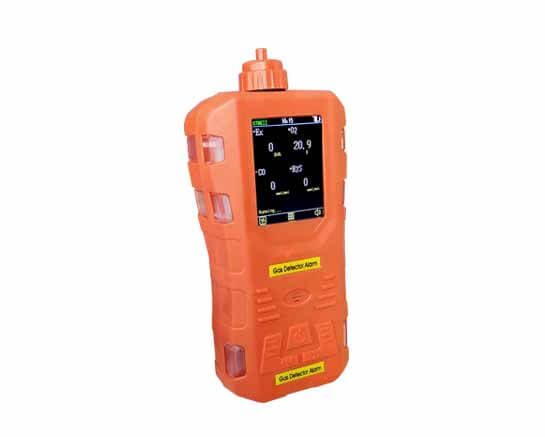

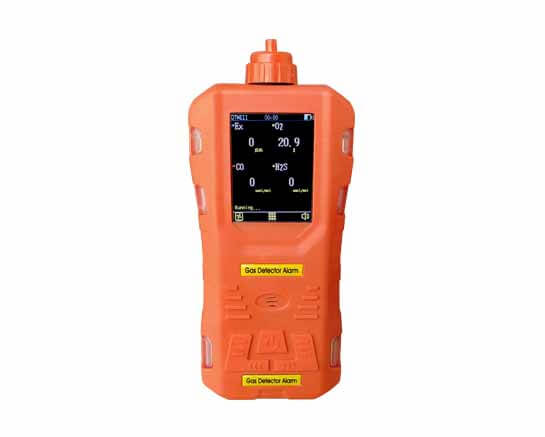

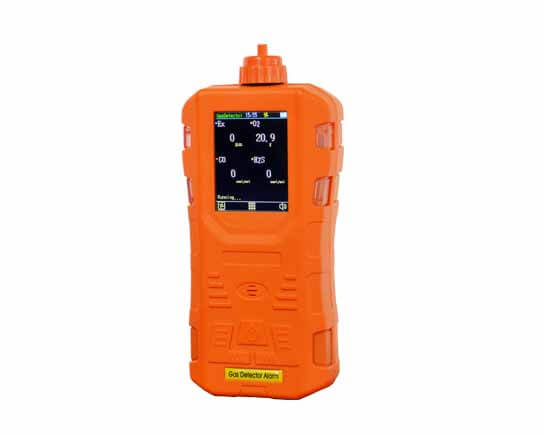

The detector uses a pumping method to detect gas, and the sensitive element uses a high-quality gas sensor, which has excellent sensitivity and excellent repeatability; the instrument uses embedded microcomputer control, simple operation, complete functions, high reliability, and a variety of adaptation Ability to use graphic LCD display, intuitive and clear.
|
Gas |
Measuring range |
Optional range |
Resolution |
Response time |
|
EX |
0-100%LEL |
0-100%VOL (infrared) |
1%LEL/1%VOL |
≤15second |
|
O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%/0.01%VOL |
≤15second |
|
H2S |
0-100PPM |
0-50、200、1000PPM |
0.1/1PPM |
≤15second |
|
CO |
0-1000PPM |
0-500/2000/5000PPM |
0.1/1PPM |
≤15second |
|
NO2 |
0-20PPM |
0-50、1000PPM |
0.1/1PPM |
≤20second |
|
Natural gas |
0-100%LEL |
0-100%VOL |
1%LEL/1%VOL |
≤15second |
|
NOX |
0-20PPM |
0-50、1000PPM |
0.1/1PPM |
≤20second |
|
CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%VOL |
≤15second |
|
CO2 |
0-5000PPM |
0-1%、5%、10%VOL (infrared) |
1PPM/0.01%VOL |
≤20second |
|
NO |
0-250PPM |
0-500、1000PPM |
1PPM |
≤20second |
|
N2 |
0-100%VOL |
0-100%VOL |
0.1%VOL |
≤15second |
|
Alcohol |
0-100%LEL |
0-100%LEL |
1%LEL/1%VOL |
≤15second |
|
SO2 |
0-20PPM |
0-50、1000PPM |
0.1/1PPM |
≤20second |
|
CL2 |
0-20PPM |
0-10、50、100PPM |
0.1PPM |
≤20second |
|
dichlorosilane |
0-20PPM |
0-20、100PPM |
1/0.1PPM |
≤20second |
|
NH3 |
0-100PPM |
0-50、500、1000PPM |
0.1/1PPM |
≤20second |
|
Silicon tetrachloride |
0-20PPM |
0-20、100PPM |
1/0.1PPM |
≤20second |
|
H2 |
0-1000PPM |
0-40000PPM |
1/10PPM |
≤20second |
|
PH3 |
0-20PPM |
0-20、1000PPM |
0.1/1PPM |
≤20second |
|
HCL |
0-20PPM |
0-20、50、100PPM |
0.1/1PPM |
≤20second |
|
Acrylonitrile |
0-100PPM |
0-100PPM |
1PPM |
≤20second |
|
TVOC |
0-100PPM |
0-100PPM |
1PPM |
≤20second |
|
CLO2 |
0-50PPM |
0-10、100PPM |
0.1PPM |
≤20second |
|
HCN |
0-50PPM |
0-100PPM |
0.1PPM |
≤20second |
|
ETO |
0-10PPM |
0-100、1000PPM |
1PPM |
≤20second |
|
O3 |
0-10PPM |
0-20、100PPM |
0.01/0.1PPM |
≤20second |
|
CH2O |
0-20PPM |
0-50、100PPM |
0.1/1PPM |
≤20second |
|
F2 |
0-10PPM |
0-1、10PPM |
1/0.1PPM |
≤20second |
|
HF |
0-10PPM |
0-1、10、50、100PPM |
0.01/0.1PPM |
≤20second |
|
Xylene, toluene |
0-20PPM |
50、100PPM |
0.1/1PPM |
≤20second |
|
Stench |
0-100PPM |
0-100PPM |
1PPM |
≤20second |
|
For unlisted gas, please contact our sales department |
||||
|
Detection method |
pump suction |
|
Sensor type |
catalysis,electrochemistry, PID, infrared,semiconductor |
|
Detection gas |
Can detect 1--4 kinds of gas at the same time, any combination of sensors
see the attached gas table |
|
Response time |
≤20s |
|
Display error |
±5% FS |
|
Display |
Adopting 2.4-inch high-definition full-color viewing angle IPS industrial screen
|
|
Indication mode |
LCD displays real-time data and system status, LED, sound, vibration indicate alarm, fault and undervoltage |
|
Working environment: temperature |
-20 ℃ ～ 50 ℃; humidity: <95% RH (no condensation) |
|
Data storage |
With data storage function, can store 1000 data |
|
Working voltage: |
DC3.7V; 2000mAh |
|
Charging time |
≤6h |
|
Working time |
≥8h continuous (non-alarm standby state) |
|
Explosion-proof certificate number: |
CNEx18.4927X
|
|
Explosion-proof mark: |
Ex ib llB T3 Gb
|
|
Protection grade |
IP67
|
|
Size: |
164mm × 78mm × 50mm (Length × Width × Height) |
|
Weight: |
about 400g
|
|
Shell material |
frosted rubber
|
