    • On-site concentration display, sound and light alarm
    • Large screen LCD display
    • Alarm record query function
    • Uploadable computer function
    • It can monitor multiple detectors of different gas components at the same time and centrally control

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]

product description

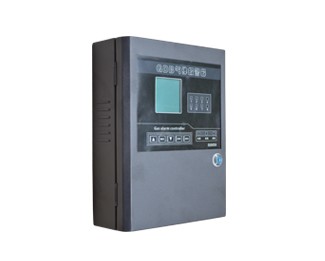

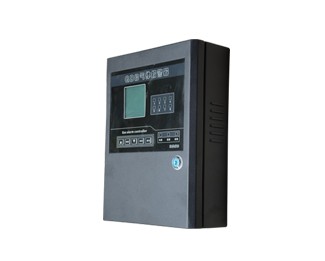

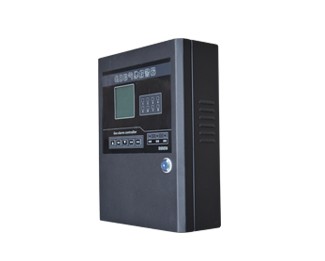

GDB5 multi-point monitoring gas detection alarm controller is used to detect the content within the lower limit of the flammable gas or liquid vapor explosion in the air. It can be equipped with multiple detection probes to control multiple points at the same time. This system uses a microprocessor as the control unit, and a high-performance catalytic gas sensor as the detection sensor, with high sensitivity and fast response speed. When the concentration of flammable gas in the environment reaches or exceeds the preset alarm value, the controller immediately emits an audible and visual alarm, and drives the exhaust or other peripheral actions to prevent explosions and fire accidents, thereby protecting life and the system can be widely used Carry out safety inspections in factories, oil depots, liquefied gas stations, gas stations, gas stations, paint spray booths, etc. where fire and explosion protection is required.

Main function
Henan Zhong An Electronic Detection Technology CO.,LTD.
  • On-site concentration display, sound and light alarm
  • Large screen LCD display
  • Alarm record query function
  • Uploadable computer function
  • It can monitor multiple detectors of different gas components at the same time and centrally control



Technical index

Concentration unit

% LEL, PPM

Precision

± 5% FS (combustible)

Output signal

4-20mA or RS485

Reporting alarm points

two levels of alarm, which can be set freely by the user

Preset value

(EX) Low report: 20% LEL High report: 50% LEL

Indication mode

LCD digital display concentration data, LCD indicates alarm or fault status

Output mode

switch quantity, MAX 3.0A

Installation

Fixed installation on site, wall-mounted

Network capacity

4 channels 8 channels 16 channels 32 channels 50 channels

Working environment

 temperature -20 ~ 50 ℃; humidity ≤95% RH

Working voltage

AC220V ± 10% 50HZ

Function rate

Monitor Max 6W Detector 1W

Dimension

320mmX250mmX90mm (including hanging board)

Cable requirements

RVVP3 × 1.5mm², or RVVP4 × 1.5mm², two-wire RS requires 2 × 2.5m
