    • Upload to computer function
    • Using advanced ultra-low energy micro component
    • Ultra bright LCD display
    • Ultra small ergonomic design
    • Sensor fault self-test, automatic calibration function
    • Replaceable insert sensor module
    • Two levels triple alarms (sound, light, vibration)
    • Sound and light alarm can be clearly identified

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]



Product description

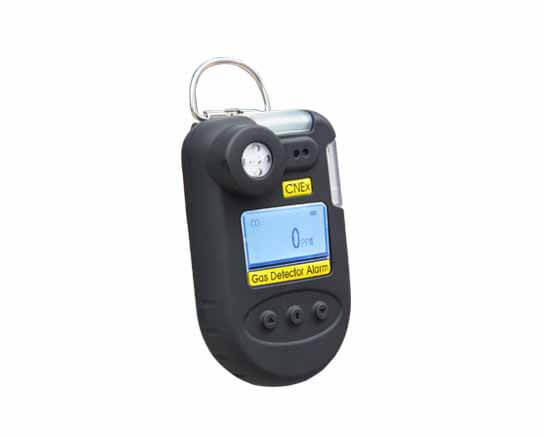

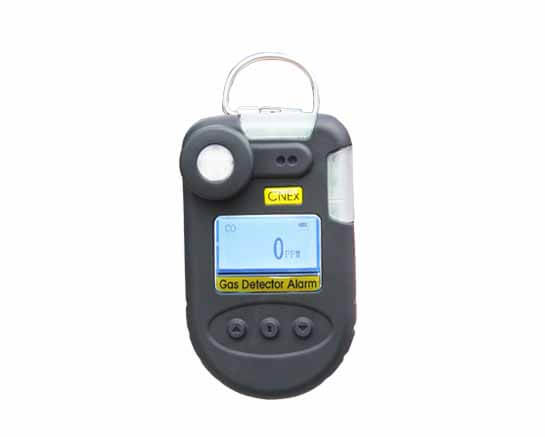

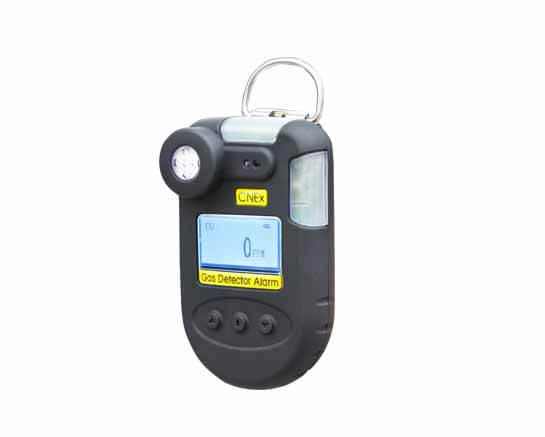

Portable O3 gas detector has LCD display function and rechargeable lithium battery powered digital ozone gas monitor. Portable gas detectors and alarms from Gas Monitor Point for the detection of levels of Ozone (O3).

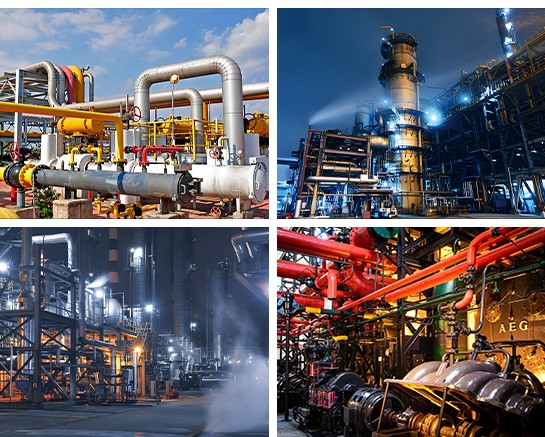

G10 is one waterproof gas detector that adopts imported sensors, the quality is stable and reliable. With leading operation menu, 1700MA rechargeable lithium batteries, and replaceable inserted gas sensing module, our  model works in environment of -20°C to 70°C, and for its features such as explosion-proof, waterproof and dustproof, it is the preferred tool for oil production engineering, metallurgy, chemical industry, municipal, sewage treatment, electricity, gas, mining, tunnel construction, storage, paper making, pharmaceutical, brewing ,and other fields which need to detect hazardous gases!

G10 gas detector can (customized) detect carbon monoxide, hydrogen sulfide gas at the same time.



Please choose the gas that you want to test with this mahine from the below gases list;



Gas

Measuring range

Optional range

Resolution

Response time

 EX(LEL)

0-100%LEL

0-100%VOL (infrared)

1%LEL/1%VOL

≤15second

 O2

0-30%VOL

0-30%、0-100%VOL

0.1%/0.01%VOL

≤15second

H2S

0-100PPM

0-50、200、1000PPM

0.1/1PPM

≤15second

CO

0-1000PPM

0-500/2000/5000PPM

0.1/1PPM

≤15second

NO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

Natural gas

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

NOX

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CH4

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

 CO2

0-5000PPM

0-1%、5%、10%VOL (infrared)

1PPM/0.01%VOL

≤20second

NO

0-250PPM

0-500、1000PPM

1PPM

≤20second

N2

0-100%VOL

0-100%VOL

0.1%VOL

≤15second

Alcohol

0-100%LEL

0-100%LEL

1%LEL/1%VOL

≤15second

SO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CL2

0-20PPM

0-10、50、100PPM

0.1PPM

≤20second

dichlorosilane

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

NH3

0-100PPM

0-50、500、1000PPM

0.1/1PPM

≤20second

Silicon tetrachloride

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

H2

0-1000PPM

0-40000PPM

1/10PPM

≤20second

PH3

0-20PPM

0-20、1000PPM

0.1/1PPM

≤20second

 HCL

0-20PPM

0-20、50、100PPM

0.1/1PPM

≤20second

Acrylonitrile

0-100PPM

0-100PPM

1PPM

≤20second

TVOC

0-100PPM

0-100PPM

1PPM

≤20second

CLO2

0-50PPM

0-10、100PPM

0.1PPM

≤20second

HCN

0-50PPM

0-100PPM

0.1PPM

≤20second

 ETO

0-10PPM

0-100、1000PPM

1PPM

≤20second

 O3

0-10PPM

0-20、100PPM

0.01/0.1PPM

≤20second

 CH2O

0-20PPM

0-50、100PPM

0.1/1PPM

≤20second

 F2

0-10PPM

0-1、10PPM

1/0.1PPM

≤20second

 HF

0-10PPM

0-1、10、50、100PPM

0.01/0.1PPM

≤20second

Xylene, toluene

0-20PPM

50、100PPM

0.1/1PPM

≤20second

Stench

0-100PPM

0-100PPM

1PPM

≤20second

For unlisted gas, please contact our sales department



Main function
  • Ultra bright LCD display
  • Ultra small ergonomic design
  • High waterproof design
  • Sensor fault self-test, automatic calibration function
  • Replaceable insert sensor module
  • Two levels triple alarms (sound, light, vibration)
  • Sound and light alarm can be clearly identified
  • Casted plastic shell
  • Antiskid, waterproof, dust proof, explosion proof



Technical index

Test gas

O3

Range 0-5PPM, 0-10PPM,0-20PPM,0-100PPM
Resolution 0.01ppm/0.1ppm

Accuracy

3%F.S

Response time

T90<10s
