    • Carry light, sound, light, vibration alarm indication
    • Color English digital display
    • Power-on self-test
    • Upload computer function (optional)
    • Simple product use, alarm record query
    • Support 5 kinds of gas real-time detection (must be customized)

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]

Product description

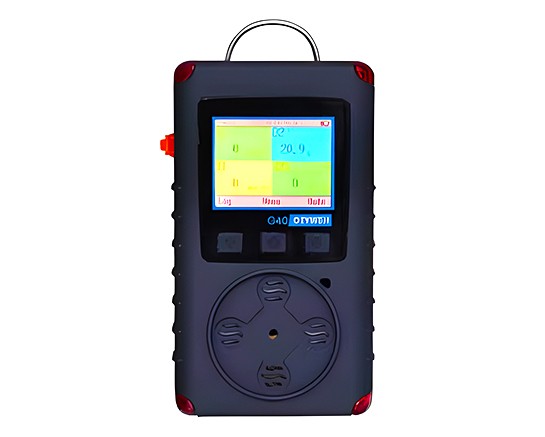

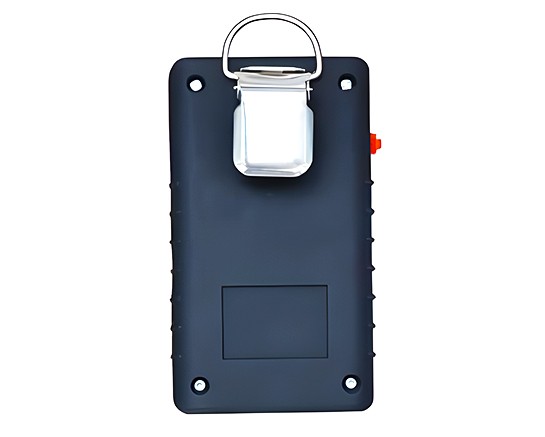

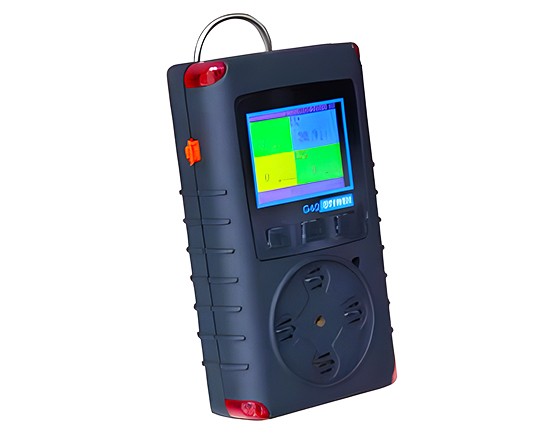

Otywell supply Multi-Gas Detector, 4 Gas, Detects Carbon Monoxide, Combustible, Hydrogen Sulfide, nitrogen dioxide and other four gases can be customizedand. The G40 multi-gas detector adopts color display technology and full Chinese friendly interface operation. It is a detection instrument that can be configured with a single gas or multiple gas sensors, single, two-in-one, three-in-one, four-in-one, five-in-one or Choose four toxic gas sensors for detection.

The G40 multi-parameter detector has high sensitivity and fast response time. It can upload computer query records and audio sound and light alarm prompts, which can adapt to concentration monitoring in more complex environments. The product is suitable for chemical, pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, wine making and other places.



Gas

Measuring range

Optional range

Resolution

Response time

 EX

0-100%LEL

0-100%VOL (infrared)

1%LEL/1%VOL

≤15second

 O2

0-30%VOL

0-30%、0-100%VOL

0.1%/0.01%VOL

≤15second

H2S

0-100PPM

0-50、200、1000PPM

0.1/1PPM

≤15second

CO

0-1000PPM

0-500/2000/5000PPM

0.1/1PPM

≤15second

NO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

Natural gas

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

NOX

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CH4

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

 CO2

0-5000PPM

0-1%、5%、10%VOL (infrared)

1PPM/0.01%VOL

≤20second

NO

0-250PPM

0-500、1000PPM

1PPM

≤20second

N2

0-100%VOL

0-100%VOL

0.1%VOL

≤15second

Alcohol

0-100%LEL

0-100%LEL

1%LEL/1%VOL

≤15second

SO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CL2

0-20PPM

0-10、50、100PPM

0.1PPM

≤20second

dichlorosilane

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

NH3

0-100PPM

0-50、500、1000PPM

0.1/1PPM

≤20second

Silicon tetrachloride

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

H2

0-1000PPM

0-40000PPM

1/10PPM

≤20second

PH3

0-20PPM

0-20、1000PPM

0.1/1PPM

≤20second

 HCL

0-20PPM

0-20、50、100PPM

0.1/1PPM

≤20second

Acrylonitrile

0-100PPM

0-100PPM

1PPM

≤20second

TVOC

0-100PPM

0-100PPM

1PPM

≤20second

CLO2

0-50PPM

0-10、100PPM

0.1PPM

≤20second

HCN

0-50PPM

0-100PPM

0.1PPM

≤20second

 ETO

0-10PPM

0-100、1000PPM

1PPM

≤20second

 O3

0-10PPM

0-20、100PPM

0.01/0.1PPM

≤20second

 CH2O

0-20PPM

0-50、100PPM

0.1/1PPM

≤20second

 F2

0-10PPM

0-1、10PPM

1/0.1PPM

≤20second

 HF

0-10PPM

0-1、10、50、100PPM

0.01/0.1PPM

≤20second

Xylene, toluene

0-20PPM

50、100PPM

0.1/1PPM

≤20second

Stench

0-100PPM

0-100PPM

1PPM

≤20second

For unlisted gas, please contact our sales department



Main function
  • Carry light, sound, light, vibration alarm indication
  • Color English digital display
  • Power-on self-test
  • Upload computer function (optional)
  • Simple product use, alarm record query
  • Support 5 kinds of gas real-time detection (must be customized)
Technical index
Detect gas NO2
Range 0-20ppm/0-2000ppm

Detection principle

Natural diffusion

Sensor

ELectrochemistry

 Instrument accuracy:

3% FS

Interface definition

 U3 port (USB)

Battery

3.7V2000mA lithium ion rechargeable battery

Working time

About 6-8 hours

Display

English color LCD display

Alarm

Three-level warning of sound, light and vibration

Working temperature

-20 --- 60 ℃

Explosion-proof certificate number

CNEx14.2619

Protection grade

IP65

Size

122mm * 68mm * 33mm

Instrument weight

210g
